Damage to more complex fractures & castings requires Engineer to draw on his skills and knowledge in coping with both the difficulties of the component’s shape, its operation and its working environment.

This all has to be completed, often with a minimum downtime, frequently involving 24/7 working.

Important Points

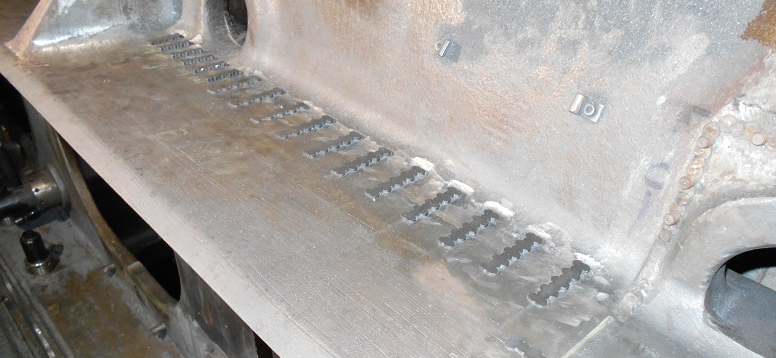

  • Following the survey, a report is presented to the customer in order to get the go-ahead for the repairs. The component is then positioned, realigned and held firmly in position using clamps and special fixtures.

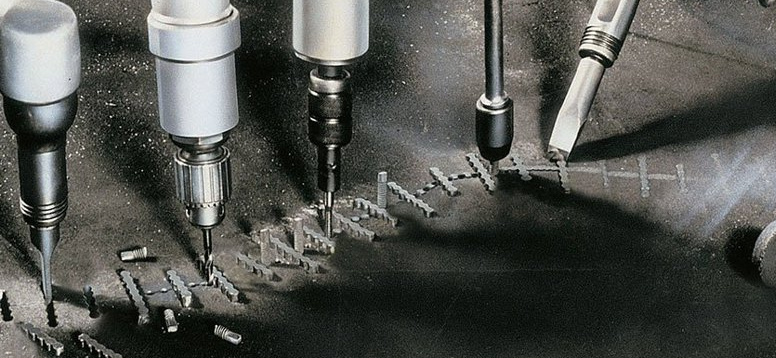

  • Using the Special Jigs, groups of holes are drilled across the line of fracture to the tool depth of the casting.
  • The holes are then joined by the use of pneumatic chisels to conform to the shape of the Keys.
  • The Key is a multi-dumbbell shaped section of a highly ductile alloy that is manufactured in various sizes, these can be cut to any length required, to suit the type of fracture.
  • Individual layers of Keys are inserted in the apertures and peened into a metal-to-metal condition, which becomes almost integral with the parent metal.
  • Holes are then drilled along the line of the fracture, then tapped, and filled with studs, each stud biting into its predecessor, resulting in a pressure-tight join that restores rigidity to the casting.
  • A stud is an important aspect of the Metal Stitching process, bearing in mind that pressure repairs are often required.
  • The studs are then run down until the heads shear, the remaining rough metal being removed by pneumatic chisels.
  • The whole repair is ground over until smooth
  • Then it’s the final coat of paint

Inquiry Now

Lightweight construction, performance excellence

  • Dampens and absorbs compression stresses
  • Provides a good ‘expansion joint’ for such castings as cylinder liners, diesel heads or any vessels subject to thermal stresses
  • Distributes the tension load away from fatigue points
  • Maintains alignment and original surfaces, since lack of heat produces no distortion
  • The vast majority of repairs can be done in situ, with little or no dismantling saving time and money
  • On-site in-situ metal stitching repair 24 x 7 using in house trained IMMENSE repair technicians.
  • Less downtime - production is up and running again
  • The cold repair process is far more cost effective than the purchase of new, expensive cast parts
